Brief Introduction Of Medium Concrete Mixer

Date: 2020-11-04      view:14       Lable: Medium Concrete Mixer Concrete Mixer Construction

The mixing system of the medium concrete mixer is composed of a motor, a pulley, a reduction box, a gear, a mixing device, and a mixing drum. The main motor is connected to the two-stage gear reducer

The mixing system of the medium concrete mixer is composed of a motor, a pulley, a reduction box, a gear, a mixing device, and a mixing drum. The main motor is connected to the two-stage gear reducer through a belt, and finally drives the two horizontally arranged mixing shafts to rotate at the same speed through two pairs of open gears.

The electrical control system needs to control the main drive motor of the medium concrete mixer, the motor of the water supply system, the motor of feeding, unloading, etc. All electrical control components are located in the distribution box. The electrical components in the distribution box are installed on an iron plate, which is safe and reliable, and easy to operate and maintain.

The unloading system is at the bottom of the medium concrete mixer, and the unloading is carried out by manual push rod. The connection between the discharge door and the mixing drum is sealed with a sealing plate, and the position of the sealing plate can be adjusted to ensure the purpose of sealing.

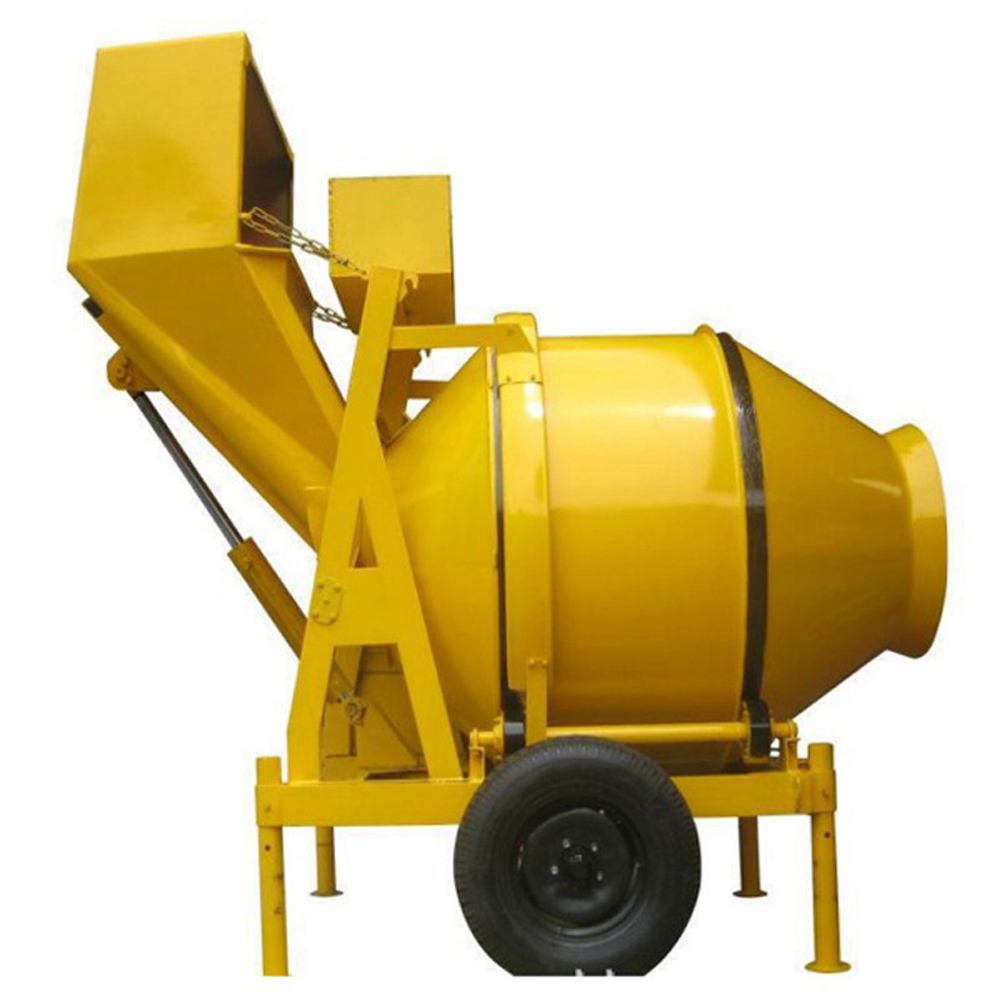

Brief Introduction Of Medium Concrete Mixer




Previous:Maintenance Of Medium Concrete Mixer After Use
Next:Operating Instruction Of Medium Concrete Mixer
