CM350-4A Tilting Drum Concrete Mixer

1. Leak resistance and leak stopping projects: suitable for expansion joint/movement joint leaking, settlement joint leaking, metro leaking, tunnel leaking, mine leaking, dam leaking and other leak re

TIME : 2018-11-07
LABEL： Concrete Mixer Drum Concrete Mixer CM350-4A Concrete Mixer

Introduction of

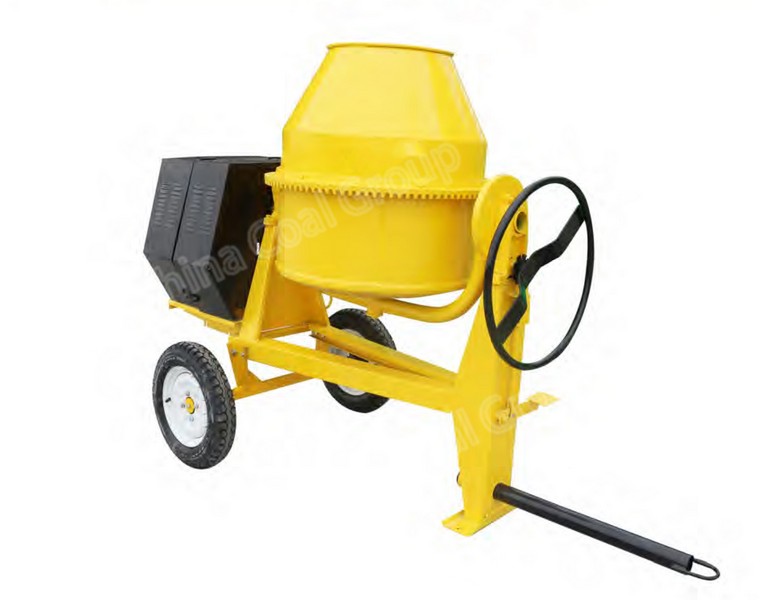

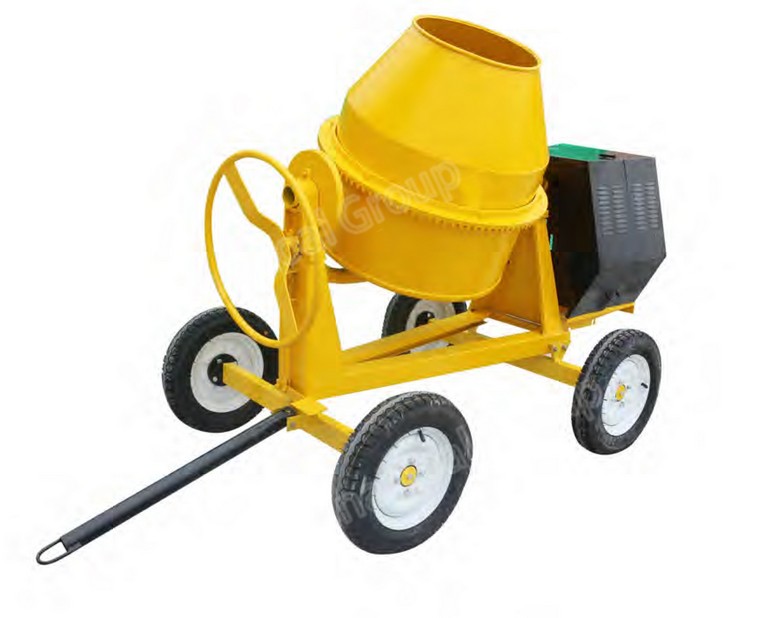

CM350-4A Tilting Drum Concrete Mixer

Portable Drum Cement Mixer for Construction has the advantages of

1. Small in size

2. Manually operate and move easily

3. High speed and top quality for mixing

Portable Drum Cement Mixer for Construction has 3 types, electric motor driven, gasoline engine driven and diesel engine driven.

Most of Portable Drum Cement Mixer for Construction adopt electric motors. Depends on the different clients' areas, it has different models. Main difference lies in the local electric voltage and frequency.

Main Parameter of

CM350-4A Tilting Drum Concrete Mixer

Model	CM350-4A
Drum Capacity	350l
Mixing capacity	280l
Productivity	4-5m³/h
Bags of Cement per Batch	1 Bag Cement(50kg/bao)
Drum Rotation Speed	25-30rpm
Drum Thickness	3mm/4mm(uper/bottom)
Drum Size	800*900mm
Tyre Size and Number	4(4.0-12)
Total weight	260-290kg
Overall Size	196011001700
Packing Size	18608601100
