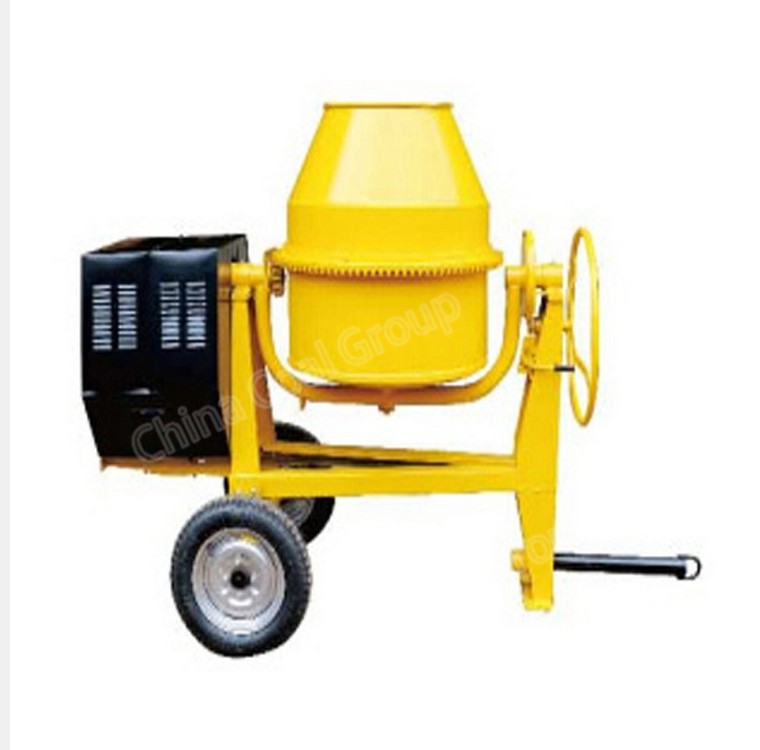

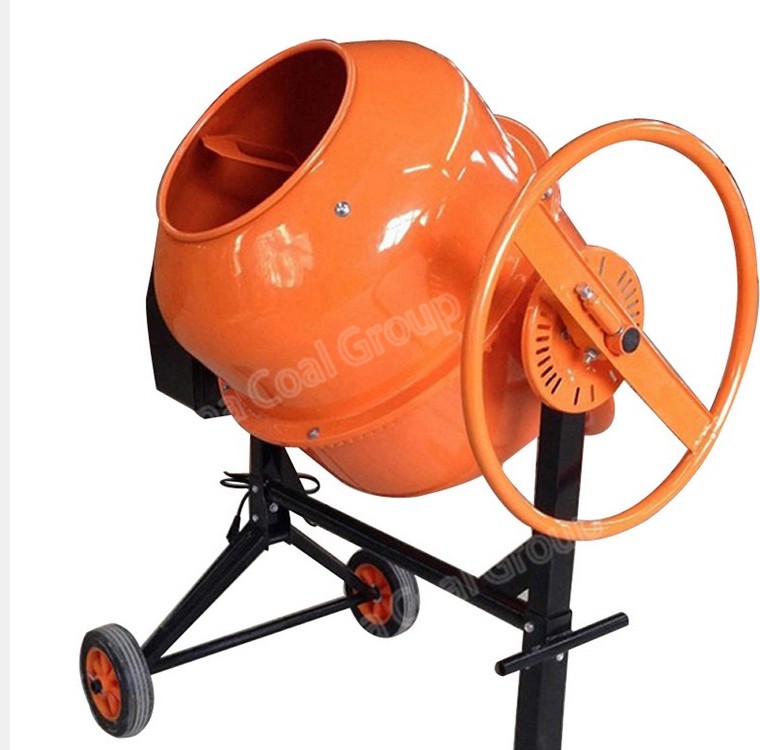

1.CM2A Portable Electric Mini Drum Cement Concrete Mixer is a device that combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum
1.CM2A Portable Electric Mini Drum Cement Concrete Mixer is a device that combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components.
2. For smaller volume works portable concrete mixer is often used so that the concrete can be made at the construction site, giving the workers ample time to use the concrete before it hardens.
3. Portable Concrete Mixer can be assembled with diesel engines, gasoline engines and electric motors with capacities 260L, 300L,350L and 400L .
Main Parameter of|
Main Technical Parameter |
|||||
|
Model |
CM-2A Portable Concrete Mixer |
||||
|
Charging Volume |
260L |
300L |
350L |
400L |
500L |
|
Reclaiming Volume |
230L |
270L |
320L |
370L |
470L |
|
Productivity |
6-10m3/h |
8-12m3/h |
10-14m3/h |
12-16m3/h |
16-18m3/h |
|
Speed of Mixing Drum |
30r/min |
||||
|
Power Type |
Diesel Engine/Gasoline Engine/Electric Motor |
||||
|
Engine Power |
4HP |
6HP |
|||
|
Drum Thickness |
2.75-3.75mm |
||||
|
Transmission Way |
Gear Wheel |
||||
|
Type of The Tires |
4.00-8 |
||||
|
Overall Dimension(LWHmm) |
1700× 970×1600 |
1900×1070×1700 |
1900×1070×1750 |
1900×1070×1750 |
2000×1090×1115 |
|
Weight(kg) |
300 |
320 |
330 |
340 |
400 |
|
Loading Plan |
14 sets Per20gp, 28 sets Per 40HC for Concrete Mixer |
12sets/20GP,26sets/40HC for Concrete Mixer |
|||
