Automatic Concrete Mixer Jzf350-A Large Industrial Diesel Concrete Mixer, also with another name of Biconical Reverse Discharge Diesel Concrete mixer, the mixing drum is drove by gears, and start to m
Contact Us Product Center

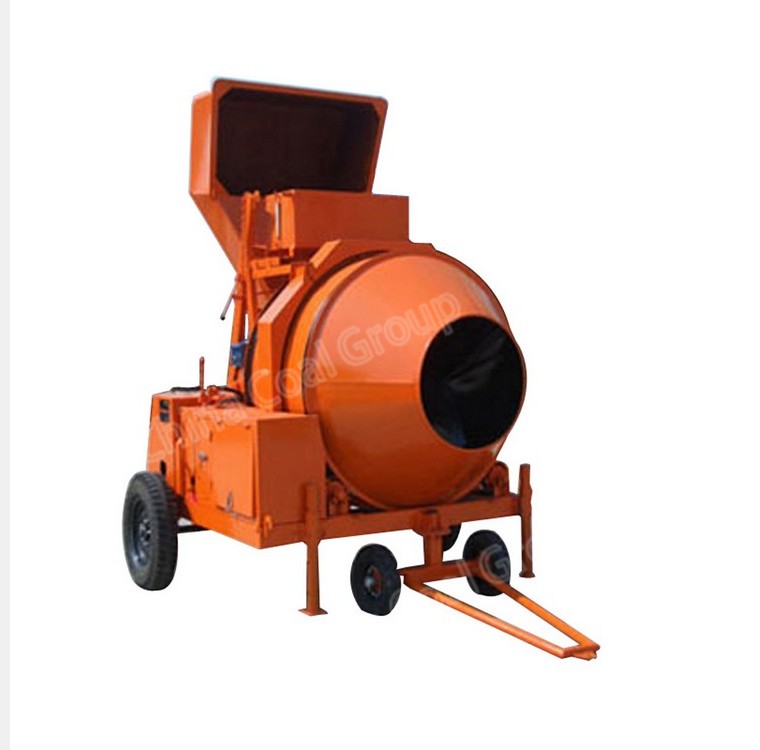

Automatic Concrete Mixer Jzf350-A Large Industrial Diesel Concrete Mixer, also with another name of Biconical Reverse Discharge Diesel Concrete mixer, the mixing drum is drove by gears, and start to mix concrete by rotating forward , and Discharge concrete by rotating backward.
Automatic Concrete Mixer Jzf350-A Large Industrial Diesel Concrete Mixer consists of concrete mixing system, raw material loading system, water supply system, electric control system. Besides, it is portable with two rubber wheels.
This Automatic Concrete Mixer Jzf350-A Large Industrial Diesel Concrete Mixer is featured by engine power, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
MAIN PARAMETER OF|
Capacity of loading(L) |
560L |
|
Power source |
Diesel engine |
|
Engine power |
8.82KW |
|
Productivity |
10-14m ³/h |
|
Mixing and raising power |
12HP |
|
Rotation rate of the mixing drum |
14r/min |
|
max particle diameter of aggregate |
60mm |
|
Traction speed |
10-15km/h |
|
Entire machine weight |
2,400kg |
|

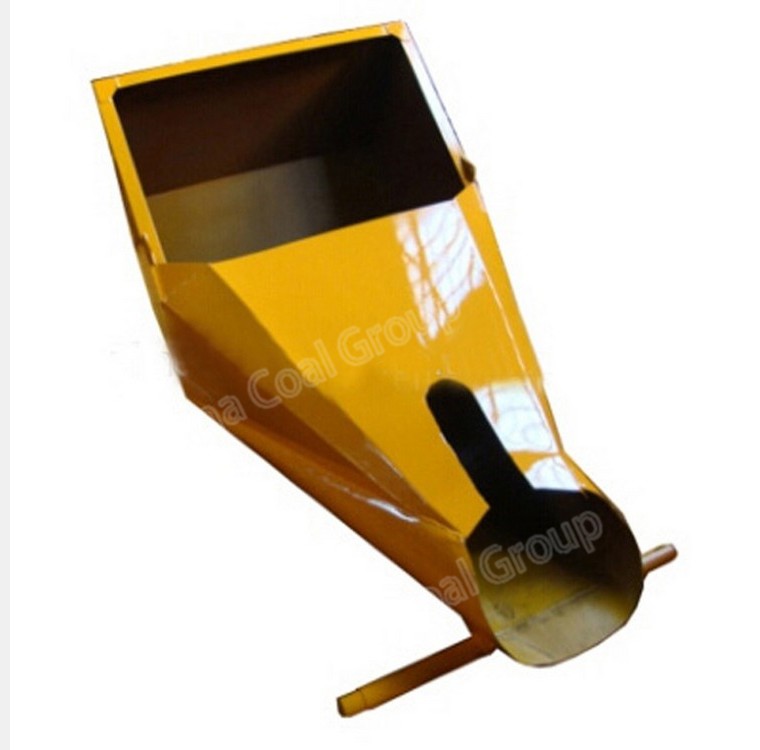

Hopper lifting model |
Hydraulic tipping hopper |
|
External dimension |
2766×2140×3170mm |
|
Engine specifications |
|
|
Model |
S195 |
|
Type |
Single-cylinder, Four-Stroke, horizontal |
|
Cylinder bore |
95mm |
|
Piston stroke |
115mm |
|
1 hr. rate output |
9.7kw(13.2HP)/2200rpm |
|
12 hr. rate output |
8.8kw(12HP)/2200rpm |
|
Piston displacement |
0.815liter |
|
Compression ration |
20:01 |
|
B.M.E.P |
650kpa |
|
Specific fuel consumption |
≤251g/kw•h |
|
Type of cooling |
Water evaporative |
|
Type of starting |
Electric |
|
Opening pressure of fuel injection |
12.75+0.98(130+10)Mpa(kg.f/cm2) |
|
Overall dimensions(L×M×H) |
900×450×760mm |
|
Net weight |
≤145kg |
|
Type of fuel injection |
UI-00 |
|
Type of nozzle coupling |
U4-3 |
|
Type of injection pump |
0 single body rack pump plunger |
