As a major classification of concrete mixers-self-dropping Medium concrete mixer are widely used in the urban market. It has a simple structure, convenient operation, many advantages, and distinctive features. Next, Fang Tai will explain this classic for you in detail.
As a major classification of concrete mixers-self-dropping Medium concrete mixer are widely used in the urban market. It has a simple structure, convenient operation, many advantages, and distinctive features. Next, Fang Tai will explain this classic for you in detail.
1.Self-falling mixer structure

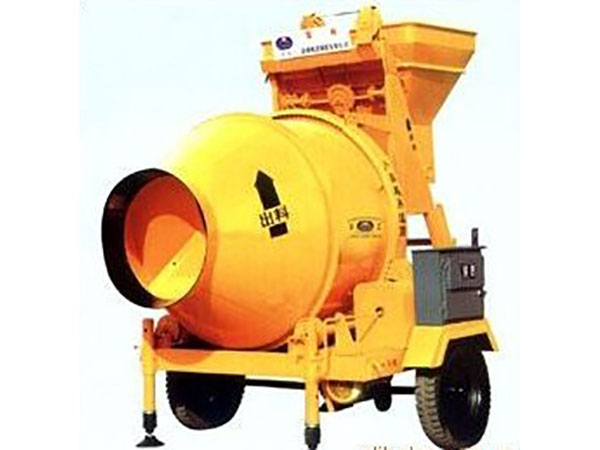

The self-falling Medium concrete mixer is composed of a feeding mechanism, a stirring mechanism, a transmission mechanism, a water supply mechanism, a chassis and an electronic control system. The schematic diagram of the structure is as follows:
1. Front support wheel 2. Loading frame 3. Chassis assembly 4. Reduction system 5. Clutch 6. Joystick 7. Walking wheel 8. Supporting wheel 9. Mixing drum 10. Electrical control box 11 cover 12. Water supply System 13.Feeding mechanism
There are two pairs of high and low blades welded in the body of the self-falling Medium concrete mixer, which are distributed across each other and form a certain angle with the axis of the mixer. When the mixer rotates, the blade lifts and drops the material while it moves the material back and forth axially Therefore, the stirring motion is relatively strong, and homogeneous concrete can be achieved by stirring for 35-45 seconds.
2.Advantages of self-falling Medium concrete mixer
①It has lower noise, lower energy consumption and smoother operation than the double horizontal shaft forced concrete mixer;
② Reasonable design, compact structure and better mixing effect;
③ It has the advantages of good Medium concrete mixer quality and high productivity.
