TDCM500-DHT Tilting Drum Concrete Mixer

TDCM500-DHT Tilting Drum Concrete Mixer

TDCM500-DHT Tilting Drum Concrete Mixer for Construction has the advantages of 1. Small in size 2. Manually operate and move easily 3. High speed and top quality for mixing Portable Drum Cement Mi

TIME : 2018-11-07
LABEL: Concrete Mixer Drum Concrete Mixer TDCM500 Concrete Mixer
Introduction of

TDCM500-DHT Tilting Drum Concrete Mixer

TDCM500-DHT Tilting Drum Concrete Mixer for Construction has the advantages of

1. Small in size

2. Manually operate and move easily

3. High speed and top quality for mixing

Portable Drum Cement Mixer for Construction has 3 types, electric motor driven, gasoline engine driven and diesel engine driven.

Most of Portable Drum Cement Mixer for Construction adopt electric motors. Depends on the different clients' areas, it has different models. Main difference lies in the local electric voltage and frequency.

Main Parameter of

TDCM500-DHT Tilting Drum Concrete Mixer

Model

TDCM500-DHT

Drum Capacity

700l

Mixing capacity

560l

Productivity

8~10m³/h

Bags of Cement per Batch

2 Bag Cement(50kg/bao)

Drum Rotation Speed

20-22rpm

Drum Thickness

3mm/4mm(uper/bottom)

Drum Size

950*900mm

Tyre Size and Number

4(5.0-12)

Total weight

2850-325kg

Overall Size

2200*1500*1950

Packing Size

2060*1060*1300

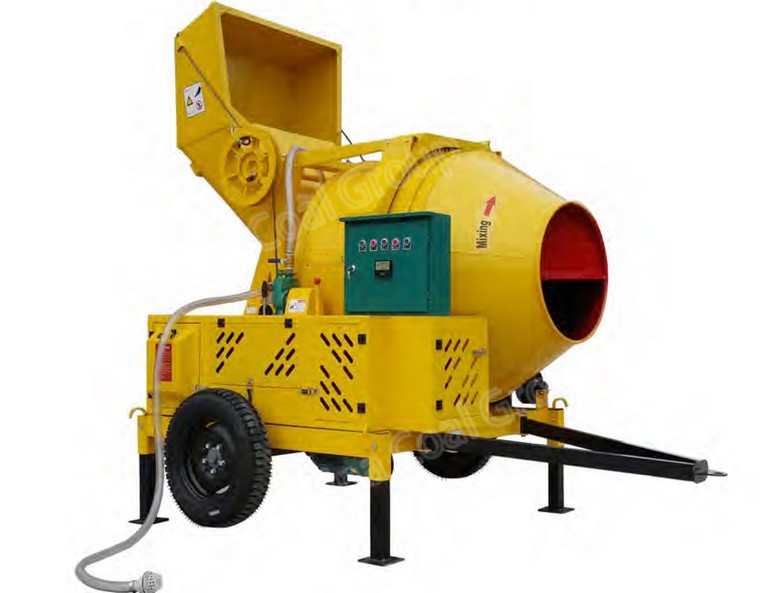

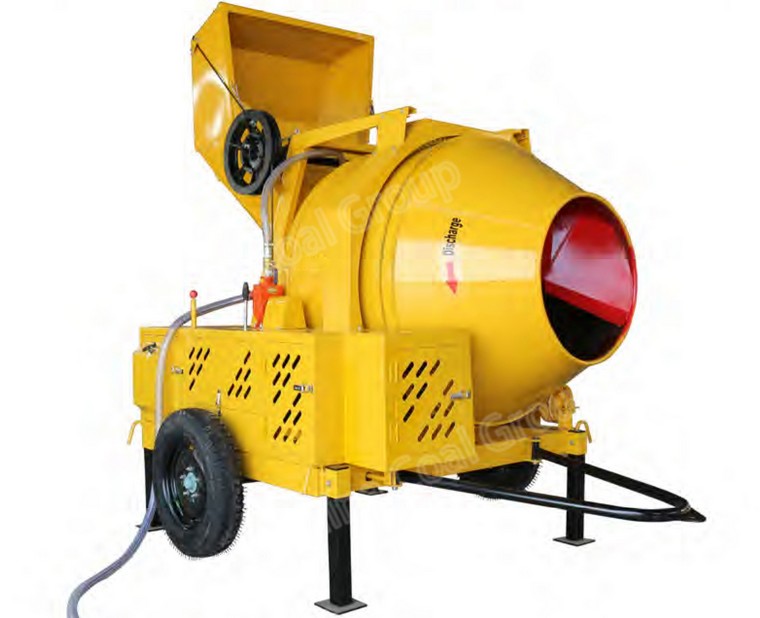

Photos Of

TDCM500-DHT Tilting Drum Concrete Mixer

  • TDCM500-DHT Tilting Drum Concrete Mixer
  • TDCM500-DHT Tilting Drum Concrete Mixer
Photos Of

TDCM500-DHT Tilting Drum Concrete Mixer
